Parameter confirmation
- tubing size and working depth
- injector capacity and reel arrangement
- pressure-control interface
- skid, truck or integrated transport limits
Product parameters
| Model | SLG50 | SLG180 | SLG270 | SLG360 | SLG450 | SLG620 |
|---|---|---|---|---|---|---|
| Max. pull capacityy (lb/t) | 11000/5 | 40000/18 | 60000/27 | 80000/36 | 100000/45 | 100000/63 |
| Max. snubbing capacityy (Ib/t) | 5500/2.5 | 20000/9 | 30000/13.5 | 40000/18 | 50000/22.5 | 50000/31 |
| Max.speed (m/min) | 60 | 60 | 60 | 60 | 48 | 48 |
| Tubing dia. (in) | 1/4"-1” | 1”-2” | 1”-23/8 | 1 1/4"-31/2 | 1 1/4"-3 1/2 | 2"-4 1/2 |
| Tubing capacityy (or customized)(m) | 3/8"-6000 | 1.5"-4000 | 1.5"-4000 | 2"-5000 | 2"-6600 | 2"-8000 |
| Working pressure (psi/MPa) | 5000/35 | 10000-15000/69-103.5 |

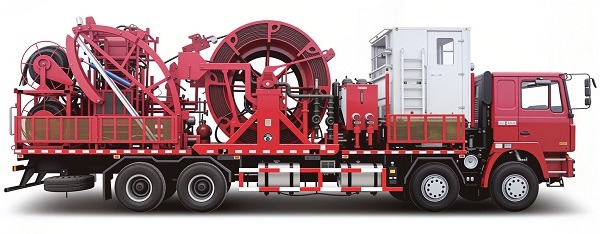

Coiled Tubing Units
Technical profile
The equipment can be quickly dismantled by 4 people and installed within one hour, with efficiency increase by over 50%. One-well-service job can be done within a single day.
At a glance
Key specifications
Max. pull capacityy (lb/t)11000/5 / 40000/18 / 60000/27 / 80000/36 / 100000/45 / 100000/63
Max. snubbing capacityy (Ib/t)5500/2.5 / 20000/9 / 30000/13.5 / 40000/18 / 50000/22.5 / 50000/31
Max.speed (m/min)60 / 60 / 60 / 60 / 48 / 48
Tubing dia. (in)1/4"-1” / 1”-2” / 1”-23/8 / 1 1/4"-31/2 / 1 1/4"-3 1/2 / 2"-4 1/2
The available technical data for SLG180 Coiled tubing unit covers Max. pull capacityy (lb/t), Max. snubbing capacityy (Ib/t), Max.speed (m/min), Tubing dia. (in), Tubing capacityy (or customized)(m). Use these fields to compare the listed configuration with the project duty, site interface and delivery requirements before requesting a final quotation.
Highly integrated design. No need to remove coil tubing and control pipeline, transportation as one unit.
Integrated crane. The built-in cable slip ring is used for well logging.
Request technical details ?Specification review
Confirm the coiled tubing equipment duty for SLG180 Coiled tubing unit before quotation.
SLG180 Coiled tubing unit is intended for well intervention, cleanout, circulation and remedial operations. Review the actual well program, site interface and operating environment before approving a final technical configuration.
Configuration selection
- injector, reel and control arrangement matched to the intervention program
- power and hydraulic package selected for the duty
- pressure-control interfaces confirmed before quotation
- transport footprint and rig-up sequence checked
The current product record provides these technical fields for review: Max. pull capacityy (lb/t), Max. snubbing capacityy (Ib/t), Max.speed (m/min), Tubing dia. (in), Tubing capacityy (or customized)(m). Match the listed values with the required duty point and request confirmation for any interface or operating condition not shown.
Product views

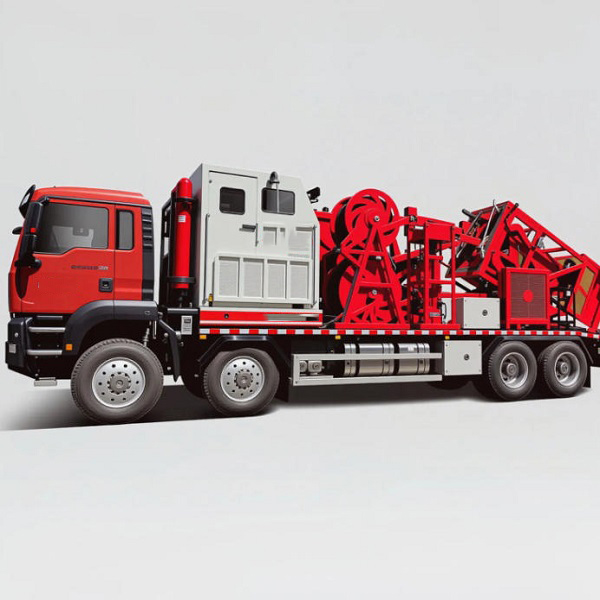

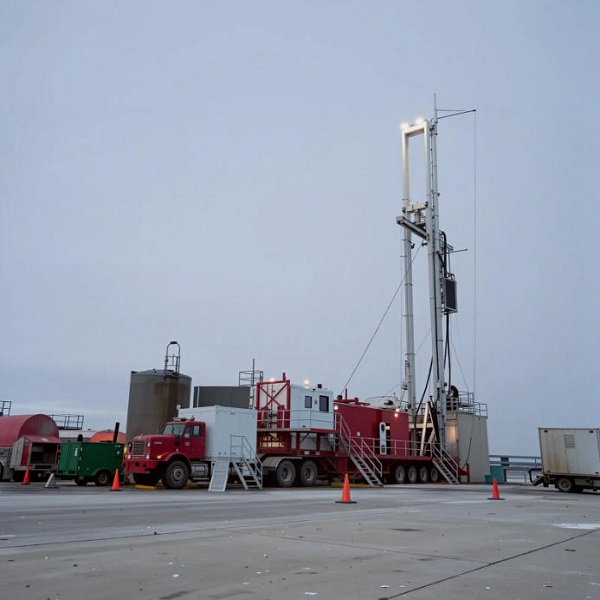

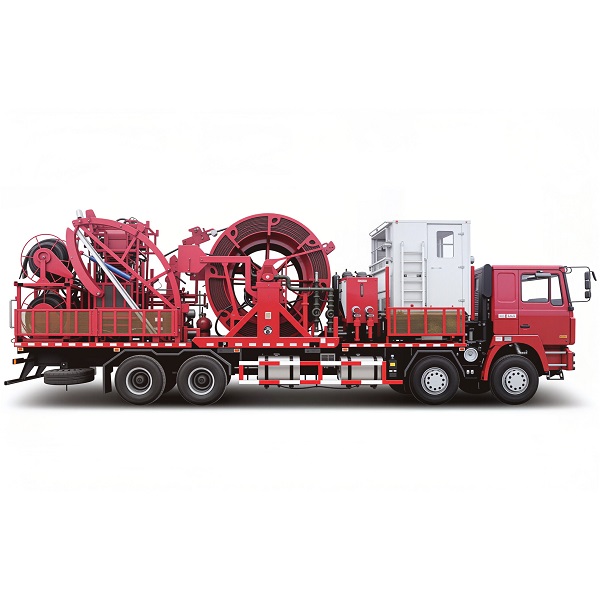

Additional views of SLG180 Coiled tubing unit.
These images are supplied for the same product title and are shown as supporting views for technical review.
Engineering context
What to confirm before quotation.
Compare injector capacity, snubbing capacity, reel size, control system and transport configuration against the intervention program.
Well InterventionDefine well depth, wellhead interface, tubing or pipe size and the intervention sequence before quotation.
Cleanout And CirculationBalance circulation rate, debris transport and pressure control so the string reaches the target section cleanly.
Stimulation And Remedial ServiceMatch pumping rate, treatment pressure and chemical compatibility to the intervention program.
Quality and documentation
Request the coiled tubing evidence package for SLG180 Coiled tubing unit.
For SLG180 Coiled tubing unit, quality and delivery review should be tied to the final configuration rather than general claims. Ask for the applicable inspection scope, dimensional information, test records and supplied documentation before purchase approval.
Quality review
- Confirm the inspection points, test scope and acceptance documents applicable to the ordered configuration.
Technical materials
- Request the coiled tubing unit datasheet for this model.
- Request the GA drawing for this model.
- Request the injector and reel configuration sheet for this model.
Delivery readiness
- Confirm package dimensions, lifting or transport requirements, installation interfaces and the documents supplied with delivery.
Buyer questions
Questions to settle before purchase.
What tubing size and working depth should be specified?
For SLG180 Coiled tubing unit, the available data sheet covers Max. pull capacityy (lb/t), Max. snubbing capacityy (Ib/t), Max.speed (m/min), Tubing dia. (in). Share the job conditions, interface dimensions and delivery location so the configuration can be checked against the project requirement.
How is injector capacity selected for the job?
For SLG180 Coiled tubing unit, the table above confirms Max. pull capacityy (lb/t): 11000/5 / 40000/18 / 60000/27 / 80000/36 / 100000/45 / 100000/63. Use that figure as the baseline and verify the final duty cycle, safety margin and installation interface before release.
Is a skid, truck or integrated configuration preferred?
For SLG180 Coiled tubing unit, the configuration must match transport limits, rig-up time, power availability and maintenance access. Confirm the preferred mounting form before final quotation.
Direct inquiry
Send the SLG180 Coiled tubing unit requirement.
For SLG180 Coiled tubing unit, include the model, application, required duty, quantity and delivery destination. For a faster technical response, also include the tubing size and working depth; injector capacity and reel arrangement; pressure-control interface.
Request product detailsConfiguration support
Need a different intervention package for SLG180 Coiled tubing unit?
Share the pressure-control requirement, pipe size, wellhead interface and site limits. We will help confirm the right intervention format.
