Parameter confirmation
- tubing size and working depth
- injector capacity and reel arrangement
- pressure-control interface
- skid, truck or integrated transport limits
Product parameters
| Model | SLG50 | SLG180 | SLG270 | SLG360 | SLG450 | SLG620 |
|---|---|---|---|---|---|---|
| Max. pull capacityy (lb/t) | 11000/5 | 40000/18 | 60000/27 | 80000/36 | 100000/45 | 100000/63 |
| Max. snubbing capacityy (Ib/t) | 5500/2.5 | 20000/9 | 30000/13.5 | 40000/18 | 50000/22.5 | 50000/31 |
| Max.speed (m/min) | 60 | 60 | 60 | 60 | 48 | 48 |
| Tubing dia. (in) | 1/4"-1” | 1”-2” | 1”-23/8 | 1 1/4"-31/2 | 1 1/4"-3 1/2 | 2"-4 1/2 |
| Tubing capacityy (or customized)(m) | 3/8"-6000 | 1.5"-4000 | 1.5"-4000 | 2"-5000 | 2"-6600 | 2"-8000 |
| Working pressure (psi/MPa) | 5000/35 | 10000-15000/69-103.5 |

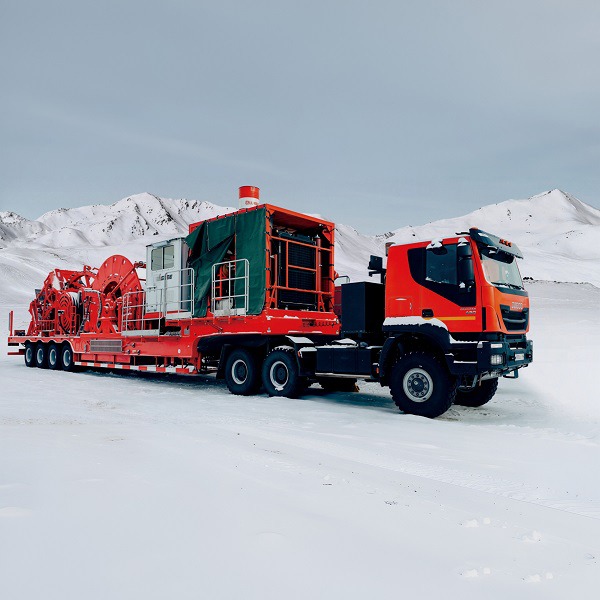

Coiled Tubing Units
Technical profile
Based on the technologies introduced from interational colaboration and developed by our ownsef, we have owned the engineering and manufacturing technologies of core components ie. injector and reels) and system integration. Now we can provide truck, traler- and skid -mounted colled tubing units with six levels of maximum pull force ranging from 50 to 620KN. Our CTUs have been widely used in domestic markets, and exported to international markets such as South America, Africa, the Middle East, Russia, and Indonesia.
At a glance
Key specifications
Max. pull capacityy (lb/t)11000/5 / 40000/18 / 60000/27 / 80000/36 / 100000/45 / 100000/63
Max. snubbing capacityy (Ib/t)5500/2.5 / 20000/9 / 30000/13.5 / 40000/18 / 50000/22.5 / 50000/31
Max.speed (m/min)60 / 60 / 60 / 60 / 48 / 48
Tubing dia. (in)1/4"-1” / 1”-2” / 1”-23/8 / 1 1/4"-31/2 / 1 1/4"-3 1/2 / 2"-4 1/2
The available technical data for Coiled Tubing Units covers Max. pull capacityy (lb/t), Max. snubbing capacityy (Ib/t), Max.speed (m/min), Tubing dia. (in), Tubing capacityy (or customized)(m). Use these fields to compare the listed configuration with the project duty, site interface and delivery requirements before requesting a final quotation.
Specification review
Confirm the coiled tubing equipment duty for Coiled Tubing Units before quotation.
Coiled Tubing Units is intended for well intervention, cleanout, circulation and remedial operations. Review the actual well program, site interface and operating environment before approving a final technical configuration.
Configuration selection
- injector, reel and control arrangement matched to the intervention program
- power and hydraulic package selected for the duty
- pressure-control interfaces confirmed before quotation
- transport footprint and rig-up sequence checked
The current product record provides these technical fields for review: Max. pull capacityy (lb/t), Max. snubbing capacityy (Ib/t), Max.speed (m/min), Tubing dia. (in), Tubing capacityy (or customized)(m). Match the listed values with the required duty point and request confirmation for any interface or operating condition not shown.
Product views
Additional views of Coiled Tubing Units.
These images are supplied for the same product title and are shown as supporting views for technical review.
Engineering context
What to confirm before quotation.
Compare injector capacity, snubbing capacity, reel size, control system and transport configuration against the intervention program.
Well InterventionDefine well depth, wellhead interface, tubing or pipe size and the intervention sequence before quotation.
Cleanout And CirculationBalance circulation rate, debris transport and pressure control so the string reaches the target section cleanly.
Stimulation And Remedial ServiceMatch pumping rate, treatment pressure and chemical compatibility to the intervention program.
Quality and documentation
Request the coiled tubing evidence package for Coiled Tubing Units.
For Coiled Tubing Units, quality and delivery review should be tied to the final configuration rather than general claims. Ask for the applicable inspection scope, dimensional information, test records and supplied documentation before purchase approval.
Quality review
- Confirm the inspection points, test scope and acceptance documents applicable to the ordered configuration.
Technical materials
- Request the coiled tubing unit datasheet for this model.
- Request the GA drawing for this model.
- Request the injector and reel configuration sheet for this model.
Delivery readiness
- Confirm package dimensions, lifting or transport requirements, installation interfaces and the documents supplied with delivery.
Buyer questions
Questions to settle before purchase.
What tubing size and working depth should be specified?
For Coiled Tubing Units, the available data sheet covers Max. pull capacityy (lb/t), Max. snubbing capacityy (Ib/t), Max.speed (m/min), Tubing dia. (in). Share the job conditions, interface dimensions and delivery location so the configuration can be checked against the project requirement.
How is injector capacity selected for the job?
For Coiled Tubing Units, the table above confirms Max. pull capacityy (lb/t): 11000/5 / 40000/18 / 60000/27 / 80000/36 / 100000/45 / 100000/63. Use that figure as the baseline and verify the final duty cycle, safety margin and installation interface before release.
Is a skid, truck or integrated configuration preferred?
For Coiled Tubing Units, the configuration must match transport limits, rig-up time, power availability and maintenance access. Confirm the preferred mounting form before final quotation.
Direct inquiry
Send the Coiled Tubing Units requirement.
For Coiled Tubing Units, include the model, application, required duty, quantity and delivery destination. For a faster technical response, also include the tubing size and working depth; injector capacity and reel arrangement; pressure-control interface.
Request product detailsConfiguration support
Need a different intervention package for Coiled Tubing Units?
Share the pressure-control requirement, pipe size, wellhead interface and site limits. We will help confirm the right intervention format.
