Parameter confirmation
- rated load and service duty
- connection and swivel interface
- clearance, dimensions and lifting arrangement
- inspection and maintenance access
Product parameters
| Model | Max. static load kN(Ib) | OD of pulley mm(in) | Qty. Of pulley | Wireline diameter mm(in) |
|---|---|---|---|---|
| YG50 | 500(112500) | 575(22.6") | 3 | 22(7/8") |
| YG70 | 700(157500) | 605(24") | 4 | 22(7/8") |
| YG110 | 1100(247500) | 605(24") | 3 | 26(1") |
| YG150 | 1500(337500) | 760(30") | 4 | 26(1")/29(1-1/8") |
| YG180 | 1800(405000) | 1060(42") | 5 | 29(1-1/8") |
| YG200 | 2000(450000) | 1100(43.3") | 5 | 32(1-1/4") |
| YG350 | 3500(787500) | 1118(44") | 5 | 32(1-1/4") |

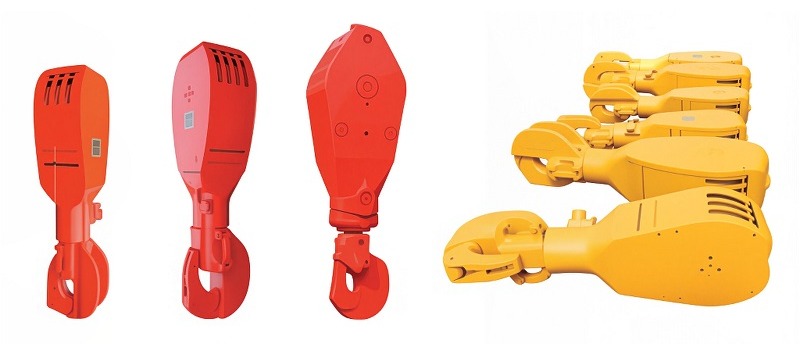

Travelling Hook
Technical profile
Travelling Hook is configured for drilling hoisting and high-load wellsite handling. Final selection should be based on the operating envelope, required capacity, mounting form and site conditions.
At a glance
Key specifications
YG50500(112500) / 575(22.6") / 3 / 22(7/8")
YG70700(157500) / 605(24") / 4 / 22(7/8")
YG1101100(247500) / 605(24") / 3 / 26(1")
YG1501500(337500) / 760(30") / 4 / 26(1")/29(1-1/8")
The available technical data for Travelling Hook covers YG50, YG70, YG110, YG150, YG180. Use these fields to compare the listed configuration with the project duty, site interface and delivery requirements before requesting a final quotation.
Specification review
Confirm the traveling hook equipment duty for Travelling Hook before quotation.
Travelling Hook is intended for drilling hoisting, load handling and rig lifting systems. Review the actual well program, site interface and operating environment before approving a final technical configuration.
Configuration selection
- hook configuration matched to the block and hoisting arrangement
- connection details confirmed against the rig interface
- inspection and service requirements included
- handling and lifting provisions checked
The current product record provides these technical fields for review: YG50, YG70, YG110, YG150, YG180. Match the listed values with the required duty point and request confirmation for any interface or operating condition not shown.
Engineering context
What to confirm before quotation.
Static load, pulley outer diameter, pulley quantity and wireline diameter must be checked against the complete hoisting system.
Standard Drilling RigsConfirm temperature, altitude, corrosion exposure, access and maintenance conditions before freezing the specification.
Deep-Well HoistingDefine well depth, wellhead interface, tubing or pipe size and the intervention sequence before quotation.
Matched Hook And Travelling-Block SystemsConfirm temperature, altitude, corrosion exposure, access and maintenance conditions before freezing the specification.
Quality and documentation
Request the travelling hook evidence package for Travelling Hook.
For Travelling Hook, quality and delivery review should be tied to the final configuration rather than general claims. Ask for the applicable inspection scope, dimensional information, test records and supplied documentation before purchase approval.
Quality review
- Confirm the inspection points, test scope and acceptance documents applicable to the ordered configuration.
Technical materials
- Request the traveling hook datasheet for this model.
- Request the interface and dimensional drawing for this model.
- Request the load and inspection information for this model.
Delivery readiness
- Confirm package dimensions, lifting or transport requirements, installation interfaces and the documents supplied with delivery.
Buyer questions
Questions to settle before purchase.
What static load and pulley quantity are required?
For Travelling Hook, the supplied sheet covers YG50, YG70, YG110, YG150. Confirm the required duty point and operating margin with the project data before purchase.
Which wireline diameter is compatible?
For Travelling Hook, the supplied sheet covers YG50, YG70, YG110, YG150. Confirm the required duty point and operating margin with the project data before purchase.
What hook interface and block system must be matched?
For Travelling Hook, the available data sheet covers YG50, YG70, YG110, YG150. Share the job conditions, interface dimensions and delivery location so the configuration can be checked against the project requirement.
Direct inquiry
Send the Travelling Hook requirement.
For Travelling Hook, include the model, application, required duty, quantity and delivery destination. For a faster technical response, also include the rated load and service duty; connection and swivel interface; clearance, dimensions and lifting arrangement.
Request product detailsConfiguration support
Need a different travelling hook configuration for Travelling Hook?
Share the operating conditions and delivery constraints. We will help confirm the most practical equipment layout.
