Parameter confirmation
- well pressure and snubbing capacity
- pipe size and wellhead interface
- mast, hydraulic and control arrangement
- site access, rig-up and safety requirements
Product parameters
| Model | Max.lifting load kN(Ib) | Max.Snubbing load kN(Ib) | Engine power kW(hp) |
|---|---|---|---|
| SDYJ40 | 400(90000) | 280(63000) | 175(235) |
| SDYJ70 | 675(135000) | 350(135000) | 242(325) |
| SDYJ90 | 900(202500) | 550(1242000) | 287(385) |
| SDYJ110 | 1125(253000) | 850(191000) | 335(450) |
| SDYJ160 | 1575(354000) | 1000(225000) | 354(475) |
| SDYJ225 | 2250(506000) | 1160(261000) | 403(540) |
| SDYJ270 | 2700(608000) | 1700(382160) | 403(540) |

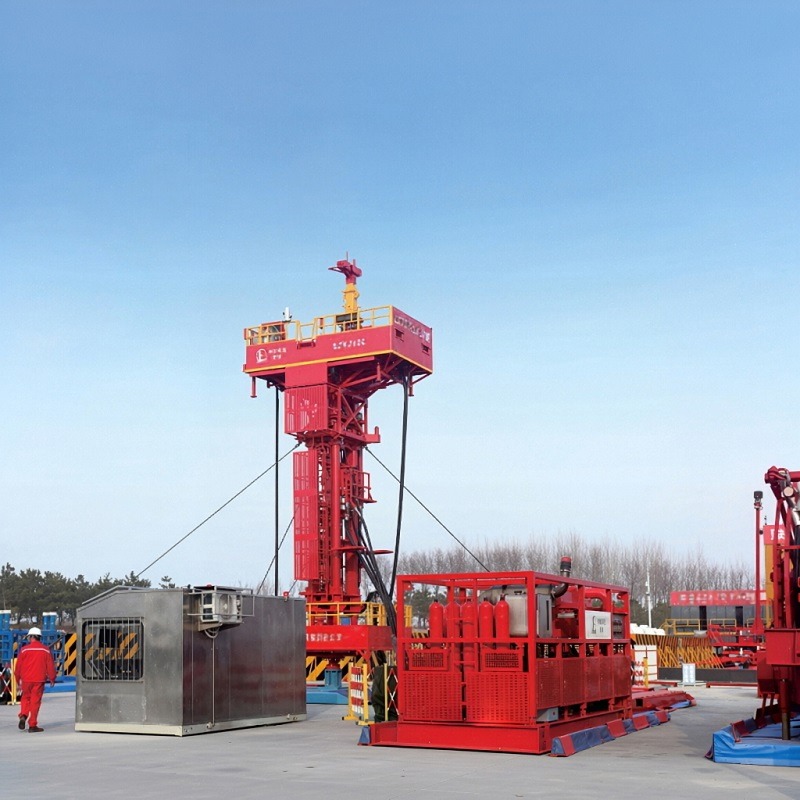

Snubbing Units
Technical profile
The operation of the snubbing equipment does not require any kil wellor bleed ofif, which can directly carry out downhole jobs It is an ideal opeation unit featured with environment protection and energy saving Combined the cooperation with the intemational technology tansfer and independent innovation, SJ sucessfully developed and mass- produced new types of SDY series snubbing units featured wth safety, environmentaly friendy and energy-saving. Fuly hydrauic drive, maximum liting load ranging from 400 to 2700 kN induding independent type and auxliary type, wth skid- mounted, trailer-mounted and truck mounted types, suitable for various operation conditons, such as land, lakes, oceans, etc.
At a glance
Key specifications
SDYJ40400(90000) / 280(63000) / 175(235)
SDYJ70675(135000) / 350(135000) / 242(325)
SDYJ90900(202500) / 550(1242000) / 287(385)
SDYJ1101125(253000) / 850(191000) / 335(450)
The available technical data for SDYJ160 remote control snubbing units covers SDYJ40, SDYJ70, SDYJ90, SDYJ110, SDYJ160. Use these fields to compare the listed configuration with the project duty, site interface and delivery requirements before requesting a final quotation.
Specification review
Confirm the snubbing equipment duty for SDYJ160 remote control snubbing units before quotation.
SDYJ160 remote control snubbing units is intended for live-well intervention, pressure workover and controlled pipe movement. Review the actual well program, site interface and operating environment before approving a final technical configuration.
Configuration selection
- hydraulic and control package matched to the intervention sequence
- wellhead and pressure-control interfaces confirmed
- transport and rig-up arrangement selected
- operator access and maintenance points reviewed
The current product record provides these technical fields for review: SDYJ40, SDYJ70, SDYJ90, SDYJ110, SDYJ160. Match the listed values with the required duty point and request confirmation for any interface or operating condition not shown.
Engineering context
What to confirm before quotation.
Review lifting load, snubbing force, pipe size, working pressure, stroke, control system and transport modules as one package.
High-Pressure Oil And Gas WellsMatch rated pressure and displacement to the job program, fluid properties and required duty cycle.
Deep Intervention WorkDefine well depth, wellhead interface, tubing or pipe size and the intervention sequence before quotation.
Cluster Wells And Offshore PlatformsCheck platform footprint, lifting points, marine protection and interface responsibilities with the project team.
Quality and documentation
Request the snubbing evidence package for SDYJ160 remote control snubbing units.
For SDYJ160 remote control snubbing units, quality and delivery review should be tied to the final configuration rather than general claims. Ask for the applicable inspection scope, dimensional information, test records and supplied documentation before purchase approval.
Quality review
- Confirm the inspection points, test scope and acceptance documents applicable to the ordered configuration.
Technical materials
- Request the snubbing unit datasheet for this model.
- Request the wellhead interface drawing for this model.
- Request the hydraulic and control configuration sheet for this model.
Delivery readiness
- Confirm package dimensions, lifting or transport requirements, installation interfaces and the documents supplied with delivery.
Buyer questions
Questions to settle before purchase.
What pipe size and working pressure must be accommodated?
For SDYJ160 remote control snubbing units, the supplied sheet covers SDYJ40, SDYJ70, SDYJ90, SDYJ110. Confirm the required duty point and operating margin with the project data before purchase.
How are lifting and snubbing forces selected?
For SDYJ160 remote control snubbing units, the available data sheet covers SDYJ40, SDYJ70, SDYJ90, SDYJ110. Share the job conditions, interface dimensions and delivery location so the configuration can be checked against the project requirement.
What site access and module limits apply?
For SDYJ160 remote control snubbing units, the available data sheet covers SDYJ40, SDYJ70, SDYJ90, SDYJ110. Share the job conditions, interface dimensions and delivery location so the configuration can be checked against the project requirement.
Direct inquiry
Send the SDYJ160 remote control snubbing units requirement.
For SDYJ160 remote control snubbing units, include the model, application, required duty, quantity and delivery destination. For a faster technical response, also include the well pressure and snubbing capacity; pipe size and wellhead interface; mast, hydraulic and control arrangement.
Request product detailsConfiguration support
Need a different intervention package for SDYJ160 remote control snubbing units?
Share the pressure-control requirement, pipe size, wellhead interface and site limits. We will help confirm the right intervention format.
