Product parameters
| Rated working pressure | 105MPa |
|---|---|
| Diameter | 40 mm |
| Product specification level / performance rating | PSL3/PR1 |
| Material grade /temperature class | EE/ P+U(-29°C~121°C) |
High Pressure Fluid Control Products
Technical profile

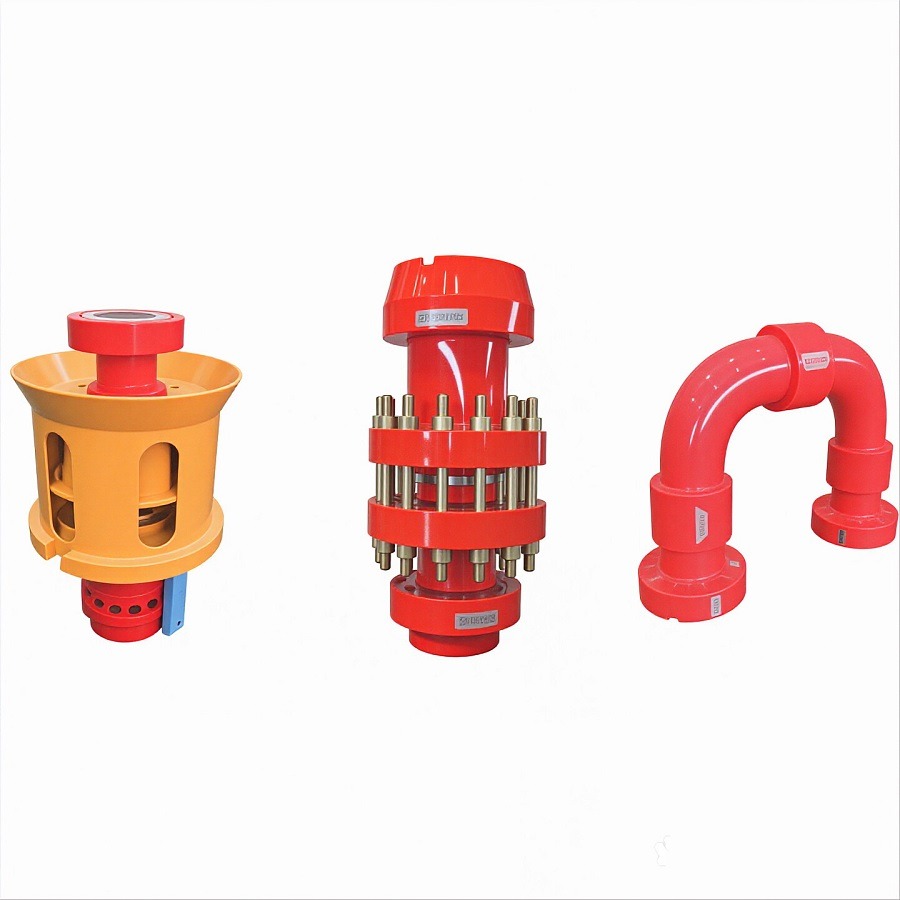

The large diameter fracturing wellhead quick plug-in device independently developed by SJ can achieve single channel quick connection of multiple shale oil (gas) fracturing wellheads, and is the first quick-inserting device in China to adopt the form of large diameter swivel joints. The development and application of this device can further reduce the number of fracturing manifolds and operation costs, leading to full electrified and automated fracturing engineering services.
At a glance
Key specifications
Diameter40 mm
Product specification level / performance ratingPSL3/PR1
Material grade /temperature classEE/ P+U(-29°C~121°C)
The available technical data for Fracturing Wellhead Quick Plug in Device covers Diameter, Product specification level / performance rating, Material grade /temperature class. Use these fields to compare the listed configuration with the project duty, site interface and delivery requirements before requesting a final quotation.
No need of diversion manifolds and multiple piping, reducingoperation cost and promoting efficiency.
Quick connection fracturing manifold system: 5-1/8"-15K (bore:130mm), meeting the connection for three wells with 5m well space.
Request technical details ?Specification review
Confirm the high-pressure fluid control equipment duty for Fracturing Wellhead Quick Plug in Device before quotation.
