Parameter confirmation
- rated depth, hook load and mast arrangement
- transport and rig-up limits
- power, drawworks and control interfaces
- climate, terrain and well program
Product parameters
| Model | Max. hook load kN(Ib) | Rated HP, DrawworkskW(hp) |
|---|---|---|
| BE400 | 1800(404600) | 600(800) |
| BE550 | 2500(550000) | 735(1000) |
| BE770 | 3500(770000) | 1100(1500) |
| BE1100 | 5000(1100000) | 1470(2000) |
Drilling Equipment
Technical profile

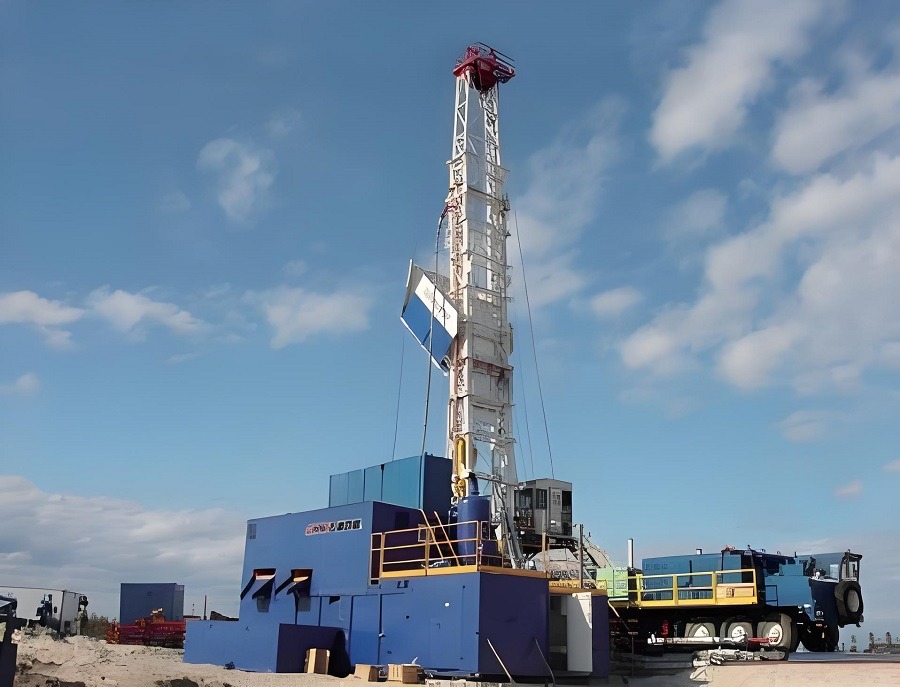

To meet the drilling development requirements in the Arctic Circle and the extremely cold areas in the Far East, the 5000m cold whetherwheel-rail drilling rig was developed. The whole rig and its associated equipment were located on one platform, and the rig with full setback and mud to be moved as integration.
At a glance
Key specifications
BE4001800(404600) / 600(800)
BE5502500(550000) / 735(1000)
BE7703500(770000) / 1100(1500)
BE11005000(1100000) / 1470(2000)
The available technical data for Cold whether wheel rail drilling rig covers BE400, BE550, BE770, BE1100. Use these fields to compare the listed configuration with the project duty, site interface and delivery requirements before requesting a final quotation.
Meeting the requirements for operation at -45°C and storage at -60°C.
Rig with setback in upright status and overall transport weight is more than 2000 tons.
Fast moving between wells, less than 3 hours for rigmovement about10m gap between wells.
Raising up mast and substructure remotely(Outside 70m).
The rig is suitable for operating in swamps and frozen soils with very low surface carrying capacity (>0.12MPa).
Less disassembly, less lifting, high safety.
Request technical details ?Specification review
Confirm the drilling equipment duty for Cold whether wheel rail drilling rig before quotation.
Cold whether wheel rail drilling rig is intended for onshore drilling, deep-well work and location-specific well construction. Review the actual well program, site interface and operating environment before approving a final technical configuration.
Configuration selection
- mast and substructure matched to the rig-up sequence
- drive and power configuration checked against site utilities
- transport modules selected for location access
- control and auxiliary equipment coordinated
The current product record provides these technical fields for review: BE400, BE550, BE770, BE1100. Match the listed values with the required duty point and request confirmation for any interface or operating condition not shown.
Engineering context
What to confirm before quotation.
The correct drilling rig depends on nominal depth, hook load, drawworks power, mast and substructure form, transport limits and pad layout.
Deep And Ultra-Deep WellsDefine well depth, wellhead interface, tubing or pipe size and the intervention sequence before quotation.
Desert And Cold-Weather FieldsConfirm temperature, altitude, corrosion exposure, access and maintenance conditions before freezing the specification.
Cluster-Well And Fast-Moving PadsDefine well depth, wellhead interface, tubing or pipe size and the intervention sequence before quotation.
Quality and documentation
Request the drilling rig evidence package for Cold whether wheel rail drilling rig.
For Cold whether wheel rail drilling rig, quality and delivery review should be tied to the final configuration rather than general claims. Ask for the applicable inspection scope, dimensional information, test records and supplied documentation before purchase approval.
Quality review
- Confirm the inspection points, test scope and acceptance documents applicable to the ordered configuration.
Technical materials
- Request the drilling rig datasheet for this model.
- Request the GA and transport drawing for this model.
- Request the major equipment configuration list for this model.
Delivery readiness
- Confirm package dimensions, lifting or transport requirements, installation interfaces and the documents supplied with delivery.
Buyer questions
Questions to settle before purchase.
What nominal drilling depth and hook load are required?
For Cold whether wheel rail drilling rig, the supplied sheet covers BE400, BE550, BE770, BE1100. Confirm the required duty point and operating margin with the project data before purchase.
Which rig configuration reduces rig-up or moving time?
For Cold whether wheel rail drilling rig, the configuration must match transport limits, rig-up time, power availability and maintenance access. Confirm the preferred mounting form before final quotation.
Can the rig be adapted for cold-weather, desert or cluster-well work?
For Cold whether wheel rail drilling rig, the working environment can change material grade, coating and service life. Confirm the ambient range and exposure conditions before the technical offer is released.
Direct inquiry
Send the Cold whether wheel rail drilling rig requirement.
For Cold whether wheel rail drilling rig, include the model, application, required duty, quantity and delivery destination. For a faster technical response, also include the rated depth, hook load and mast arrangement; transport and rig-up limits; power, drawworks and control interfaces.
Request product detailsConfiguration support
Need a different drilling depth, layout or drive for Cold whether wheel rail drilling rig?
Share the required depth, hook load, transport limit and site interface. We will help confirm whether another drilling configuration fits the project better.
